Powerful | Versatile | Reliable

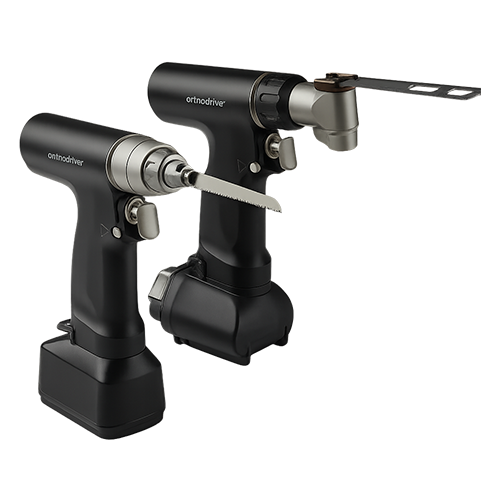

The MBQ motor handpiece allows the surgeon to maximize power during drilling and milling. The torque has been increased by more than 40% compared to the previous system. The sagittal saw allows the surgeon to perform precise saw cuts with maximum power (offering the best power-to-weight ratio).
Features
- Optional function with instant forward/reverse and oscillation mode switching.
- The now completely encapsulated control unit and an innovative, software-controlled battery charging technology have further improved system stability.
- Simple quick-change mechanism with snap lock
- The gear integrated in the handpiece allows quick switching between drilling and milling mode.
Essays

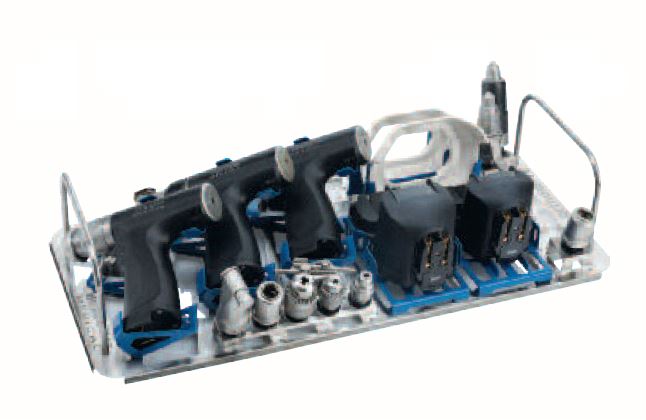

The orthodrive® system has 13 drilling/milling attachments and 4 functional attachments, all with quick-change mechanisms.
- Drill bits with or without keys
- Keyless chucks and milling cutter attachments
- jigsaw
- Sagittal saw
- Kirschner wire attachment
- Further attachment options, see catalog

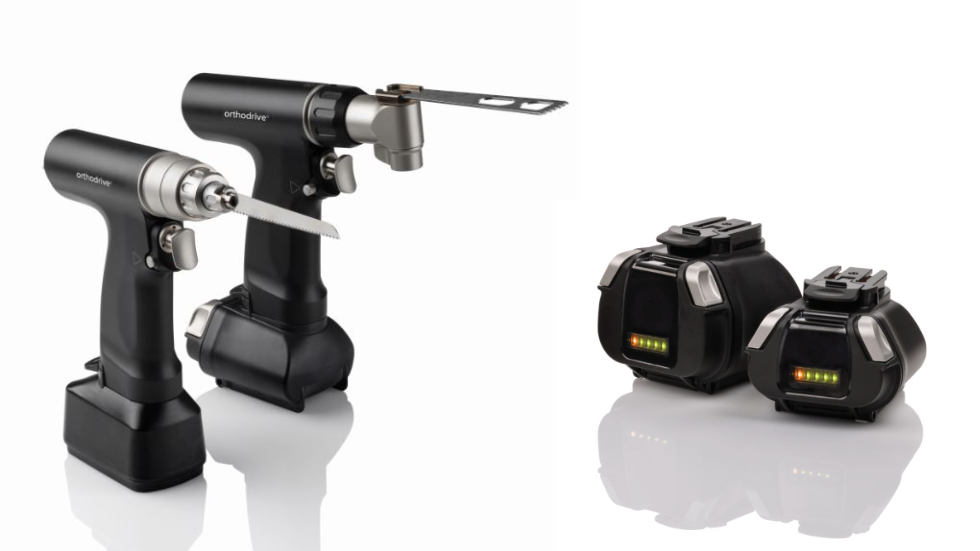

NEW – Li-ion batteries (with power indicator)
Technical Information – Motor Handpiece
MBQ-700 – modular motor handpiece
- Drilling speed: 0 – 1,350 rpm
- Milling speed: 0 – 300 rpm
- Control: Single push-button valve (MBQ-700) or double push-button valve (MBQ-701)
- Maximum torque: 19 Nm
- Cannulation diameter: 4.4 mm
- Modular attachments: 17 options
DBK-700 Sagittal Saw – Speed: 0 – 13500 cpm
DBC-700 Jigsaw – Speed: 0 – 13500 cpm
Drive options
- Li-ion battery, sterilizable
- NiMH battery, aseptic
- Electrical version, cable bound
